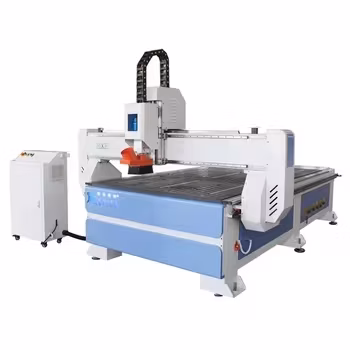

5 Axis CNC Router for Advertising Working and Acrylic Engraving

Basic Info

Model NO.	JCT1530L
Lathe Bed Structure	Thick Welded Steel T-Extrusion
Table	Removable; T-Slot with Clamps
X Y Structure	Helical Tooth Rack and Pinion
Z Structure	Z Axis High Precision Grinding Ball Screw
Operating System	5 Axis Syntec
Spindle	9kw Air Cooling Atc Spindle
Collet	Er32
Oil System	Automatic Oil Lubrication
Transport Package	Wrapped by Protection Film, Then in The Container
Specification	1500*3000*500mm
Trademark	Chaoda
Origin	Linyi City, Shandong Province
Production Capacity	3000 Sets/ Year

Product Description

5 axis cnc router for advertising working and acrylic engraving Technical Features

• All machine parts adopted top quality from all over the world,to make machine with high performance and durability.
• Multi-function, machine is with removable table, can process 3d columns,also can process flat works.
• With big rotary device,can process different kinds of 3d sculptures,statues,columns.
• Spindle of the machine rotate from 0 to 180 degree,can make arc-surface milling,bending surface machining.
• Simultaneous 5 axis system, let the rotary device make more complex 3d jobs.

Application Materials

• Thermoplastic Elastomers : Rubber, Plastic, Resin and Foam Products.
• Wood Material: Solid Wood, Red wood, Pine, beech, oak, walnut, maple, birch ,cherry ,China ash Particle board, MDF
• Acrylics material: Acrylics, Light guide plate and diffuser plate.
• Engineering Plastics Material : PVC,ABS,PE,PF,PU
• Compound material: FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates.
• Light Metal Material: Aluminum extruded, Copper and Aluminum Plates.

Model number	JCT1530L 5AXIS
X, Y, Z, B working area	1500*3000*500mm*180 degree
Rotary working size	1000mm diameter,2500mm length
Lathe bed structure	Thick welded steel T-extrusion
Table	Removable; T-slot with clamps
X Y structure	Helical tooth rack and pinion, Taiwan linear square rail
Z structure	Taiwan Ball screw, Taiwan linear square rail
Spindle	9kw air cooling ATC spindle
Collet	ER32
Working mode	Japan YASKAWA servo motor and driver
Operating system	5 axis SYNTEC
Tool magazine	Linear type automatic tool changer, 8 tools ability

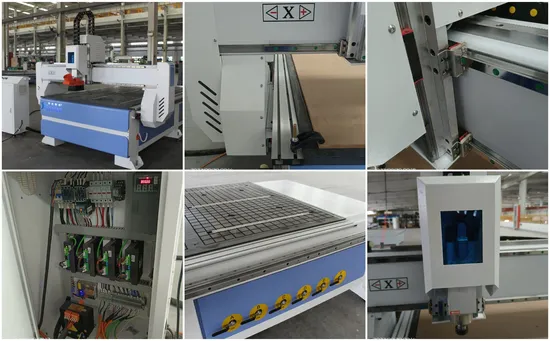

More Details:

Samples Pictures Rotary Sample Photos :Flat Sample Photos:Related Products:
Packaging & Shipping: Customer Feedback:



Certifications:



FAQ

Q1.How do you get the best price?

As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.

Please tell me what's material you want to cutting or engraving ?

And what's MAX size of carved material ?

Then I will recommend the most suitable model and the best price for you.

Q2.In case of failure,how to do?

Call us----our engineers are online for 24-hours,and ready to serve you.

Replacement of damaged parts for free---For more information,please contact us

The CD and operation manual----It show the most common failure in working processing and how to solve this problems.

IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANKS

Q3.Training and Use?

We will supply friendly English operation manual and installation. Customer is warmly welcomed to visit our factory for free training. We can also send engineer to customer's country to supply training.

Q4. Guarantee & After-sale Service?

We supply one year warranty under normal use and lifetime technical support . We can provide engineers overseas training.

Q5. Payment Terms?

T/T in advance and Alibaba Trade Assurance.

Q6.Documents after shipment?

We will send original documents to you by DHL, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Loading , and other certificates as required by customer.

If you have any other questions for CNC Router Machine,please feel free to contact us as below guide, you are always welcome!!
